Nätverksstreamer med försteg, DAC och analoga ingångar. Spotify Connect, Roon Ready, Tidal Connect

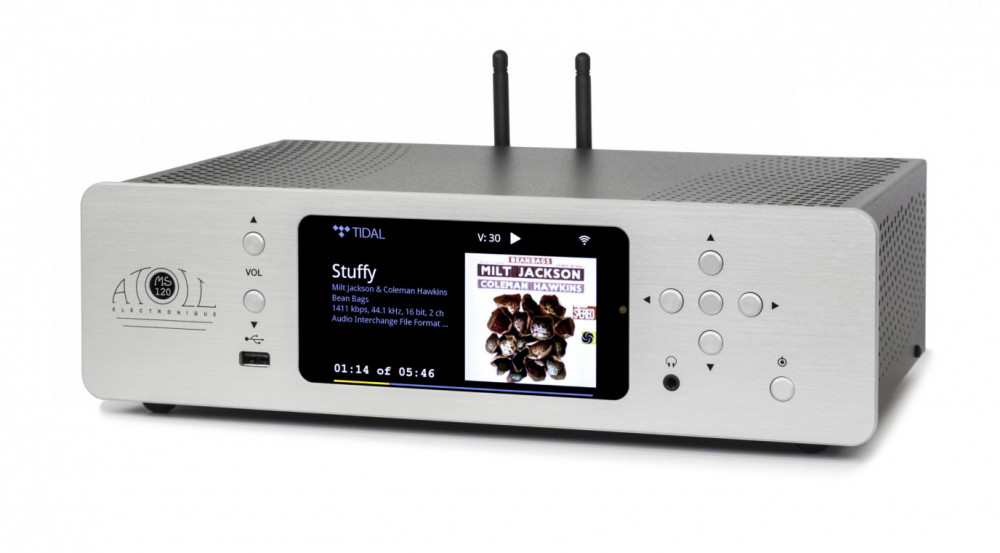

Atoll Electronique MS120
MS120
Alla produkter från Atoll Electronique tillverkas i Brecey, Frankrike i Atolls egna lokaler.
MS120 ersätter MS100. Det är nätverksstreamern i Atolls mini-serie. Den använder samma plattform som de andra nätverksspelarna i varumärket, men i ett mindre format. Det är avsett att vara naturligt associerat med ett HD120 + MA100-par men det kan också integrera ett befintligt system som en ny källa. I och med att MS120 också har en volymstyrning så går det att använda fullt ut som ett försteg om man så vill.
Den här nya versionen ärver innovationerna från ST200 Signature: ny, mer intuitiv kontrollapp, inbyggt stöd för Roon Ready, Spotify Connect, Qobuz, Tidal och Deezer, Audirvana-kompatibla, internetradio via Airable, support för DSD64 & 128-filer, ny 5-tums LED-skärm, mm.
STREAMER:
- Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
- Displays the name, tags, album cover, resolution.
- “gapless” system (uninterrupted playback of consecutive audio tracks).
- Possibility to create Playlists.
- External control (with Qobuz, Audirvana…) with RTSP protocole.
MUSIC STREAMING:
- Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer
- Roon Ready
- Spotify Connect
- Tidal Connect
- Highresaudio music streaming
INTERNET RADIO:
- Access to all internet radios with Airable system in high quality: Choices of more than 100 000 stations, podcasts…
- Displays logos stations and further information: titles, artists, resolution…
- Possibility to add radios to a « favourite » menu.
AUDIO:
- Symmetrical outputs stages with no feedback and discrete components polarized in A class
- Analog volume control (with commutated resistors) with possible By-Pass
- Transformer specifically dedicated to audio stages
- High Quality MKP link condensators.
- Burr-Brown PCM1796 converter.
END USERS:
- 5″ TFT led display (800*480).
- Serial remote control.
- Apple® and Androïd® free app.
DETAILS ABOUT READABLE FILES:
- Readable files: DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
- Acceptable Resolution: PCM up to 24bits/192kHz and DSD64 & 128.
- USB-A format: FAT32, NTFS, EXT2/3/4.
Connections:
- 2x USB-A inputs (1 front & 1 rear).
- 4x digital inputs:
- 2x coaxial S/PDIF (24 bits/192KHz)
- 2x optica S/PDIF (24 bits/192KHz)
- 1x Bluetooth® receiver
- 2x analog inputs
- 1x RJ45 network
- 1x Wifi antenna (802.11b/g/n)
- 1x pair RCA analog output
- 1x digital optical output
- 1x digital coaxial output
- 1x trigger 12V output
- 1x headphones output front (3,5mm)
Specifikationer:
- Audio supplies: 4,6VA + 3,6VA
- Total of capacitors: 5435 µF
- Dynamic: 123 dB
- Output Impedance: 22 Ohm
- Output level: 2,8 VRMS
- Signal/Noise ratio: 123 dB
- Distortion at 1kHz: 0,005%
- Bandwidth: 5Hz – 20kHz
- Rising Time: 1,7µs
- Converter digital/analog: Burr-Brown PCM1796 24 bits/192 kHz – DSD128
- Dimensions: 320x230x94mm
- Weight: 3 Kg
