Dual-mono integrerad stereoförstärkare med möjlighet till inbyggd DAC och RIAA-steg

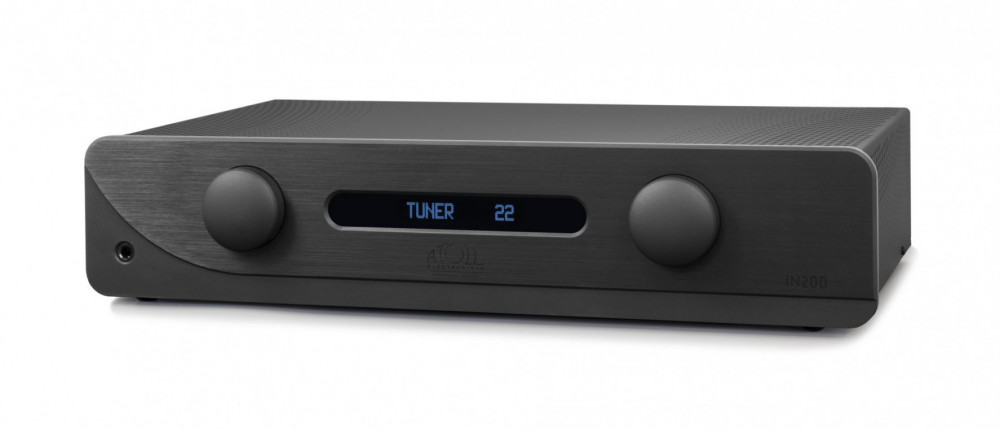

IN200 Signature

Alla produkter från Atoll Electronique tillverkas i Brecey, Frankrike i Atolls egna lokaler.

Nya IN200 Signature från franska Atoll Electronique har fått ett antal uppdateringar jämfört med föregångaren, IN200SE, och nu finns också en ordentlig inbyggd DAC som tillval!

• Symmetrical Output stages with discrete components
• Double pair of MOS-FET transistors on each channel
• Specific low consumption supplies (5VA) for analog circuits and display.
• Capacitors: 8x6800uF low ESR high quality designed specifically for ATOLL.
• 2 volume attenuators: 1 per channel
• Analog stages with Mundorf MKP condensators in a armored shell
• Complete settings (from the front panel or with the remote control) of the balance and volume
• Direct access to each inputs from the front panel or with the remote control

POSSIBLE OPTIONS:

This device can be equipped with both a choice of a DAC-card and a Phono-card. These cards are listed below.

Phono (RIAA) Board on AUX Input:

• P100 (set as MM or MC)

DA200 DAC Digital Board:

• 1x Bluetooth receiver
• 2x Coaxial Inputs (24Bits/192kHz)
• 2x Optical Inputs (24Bits/192kHz)
• 1x USB-B Input: PCM & DSD
• Audio Converter: AKM – AK4490
• PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous)
• DSD: DSD64 & DSD128
• USB Interface: XMOS with specific program designed for ATOLL

Connections:

• 5 audio Inputs (RCA), including TAPE (IN+OUT with monitoring loop)
• 1 By-pass Input (using as power amplifier)
• 2 Pre-out Outputs (for bi-amp or to link to a subwoofer)
• 1 Headphones jack 6,35mm
• 1 trigger Output 12V

Specifications:

• Power Wrms/channel/8Ω: 120 W
• Power Wrms/channel/4Ω: 200 W
• Impulse Power: 200 W
• Power supply (VA): 670
• Total of capacitors (µF): 62 000
• Inputs: 4 + 1 monitor
• Input Impedance (kΩ): 220
• Sensibility (mV): 100
• Rising Time (µs): 2,5
• Signal/Noise Ratio (dBA): 100 dB
• Bandwidth: 5 Hz – 100 kHz
• Weight (kg): 12
• Dimensions (mm): 440x90x270mm
