Högkvalitetstonarm, tidigare ABIS.

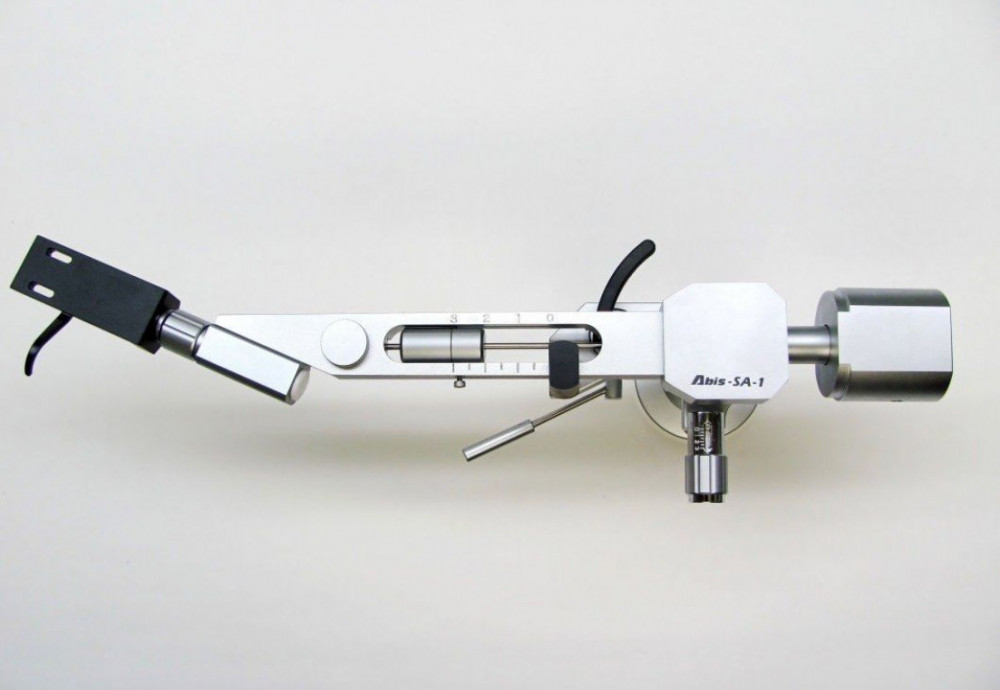

Sorane SA-1.2
Armen har den klassiska fempoliga dinkontakten i slutröret, så man kan uppgradera från den medföljande kabeln. Armen klarar stor variation av vikt på pickup/skal, från 15 till 45 gram, vilket gör att armen t ex är lämplig för Ortofon SPU.
Stereophile Klass-A rankad, fast då under namnet ABIS.
The major key to tonearm quality is the sensitivity and stability in retrieving delicate signals, for which the bearings are the determining factor. The SA-1 employs miniature radial bearings for both horizontal and vertical movement. Very high performance is achieved at a reasonable price.
The rectangular arm-wand is machined from a solid aluminum block having an advantage in rich and tight bass reproduction, as bass sound is mainly recorded in the horizontal plane of the groove.
Tonearm wires run through separate aluminum tubes inside the arm so that stereo separation is maximized.
Reproduced sound is precise and clean, thanks to hand assembly by highly skilled craftsmen.
Comes with detachable headshell, phono cable (RCA output plug, or optionally as XLR), screws, washers, wrench and marking pin.
Specifications:
- Whole Length 310mm
- Effective Length (Tonearm pivot – stylus) 239mm
- Practical Length (Tonearm pivot – Spindle) 223mm
- Overhang 16mm
- Offset angle 22.25°
- Horizontal moving sensitivity 30mg
- Vertical moving sensitivity 20mg
- Vertical Tracking Force (VTF) range 0-4.5g (2.5g + 2.0g)
- Cartridge + Headshell weight range 15-45g
- Height Adjustment(Plinth to arm wand centerline) 15-55mm
- Vertical Bearing Miniature Radial Bearing
- Horizontal Bearing Miniature Radial Bearing
- Output plug RCA (XLR : Option)
- Output cable Single core shield copper
- Tonearm Audio Lead wire OFC 4N Copper (Separate wiring in wand)
- Headshell lead wire Copper with gold plated terminal
- Headshell Machine tooled Aluminum
- Tonearm Net Weight 750g
- Attached standard Headshell Net Weight 17g
- 1.2 i neutral "silver" finish
- 1.2B Svartanodiserad
- 1.2BCS Svart och utrustad med silverkablar samt möjlighet till negativ balansering.
