Integrerad förstärkare med många möjligheter.

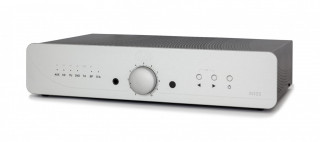

Atoll Electronique IN100 Signature

10 990 kr
Välj version
Finns i lager och för demo (Skickas från oss eller leverantör vanligtvis inom 1-2 arbetsdagar)
10 990 kr
Finns i lager (Skickas från oss eller leverantör vanligtvis inom 1-2 arbetsdagar)
10 990 kr
Lägg i varukorgen
Finns i lager och för demo (Skickas från oss eller leverantör vanligtvis inom 1-2 arbetsdagar)
Gratis frakt gäller alla ordrar över 500:-
Garanti i 24 månader
Mer produktinformation

Alla produkter från Atoll Electronique tillverkas i Brecey, Frankrike i Atolls egna lokaler.

Main features:

  • Amplifier/preamplifier Integrated 2x100Wrms/channel/8Ω
  • 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium knob and keys
  • Audio stages with discrete components, MKP technology link capacitors, high performances heatsinks
  • PCB with double layer nickel/gold, thermal protection
  • Double Toroidal Transformer of 340 VA each
  • ALPS motorised potentiometer
  • Direct access of inputs from the front panel or the remote control

POSSIBLE OPTIONS:

This device can be equipped with both a choice of one of two different DAC-cards and one Phono-card. These cards are listed below.

Phono (RIAA) Board on AUX Input:

  • P100 (set as MM or MC)

Digital board (choice of 1):

Digital Board Signature: 1 Bluetooth receiver, 2 Coaxial Inputs (24Bits/192kHz), 2 Optical Inputs (24Bits/192kHz), 1 USB-B Input: PCM & DSD, Audio Converter: AKM – AK4490PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous). DSD: DSD64 & DSD128. USB Interface: XMOS with specific program designed for ATOLL.

SPDIF Board: 2 Coaxial Inputs (24Bits/192kHz), 2 Optical Inputs (24Bits/192kHz). This card is the same as the Signature-card except the USB-input and the Bluetooth receiver.

Connections:

  • 5 audio Inputs (RCA), including TAPE (IN+OUT with monitoring loop)
  • 1 By-pass Input (using as power amplifier)
  • 2 Pre-out Outputs (for bi-amp or to link to a subwoofer)
  • 1 Headphones jack 6,35mm
  • 1 trigger Output 12V

Specifikationer:

  • Power Wrms/channel/8Ω: 100 W- Power Wrms/channel/4Ω: 140 W
  • Impulse Power: 180 W
  • Power Supply (VA): 680- Total of capacitors (µF): 31 474
  • Inputs: 4 + 1 monitor- Input Impedance (kΩ): 357
  • Sensibility (mV): 100
  • Rising Time (µs): 2,5
  • Signal/Noise Ratio (dBA): 100 dB
  • Bandwidth: 5 Hz – 100 kHz
  • Weight(kg): 11
  • Dimensions (mm): 440x90x300mm
Modell
IN100 Signature
